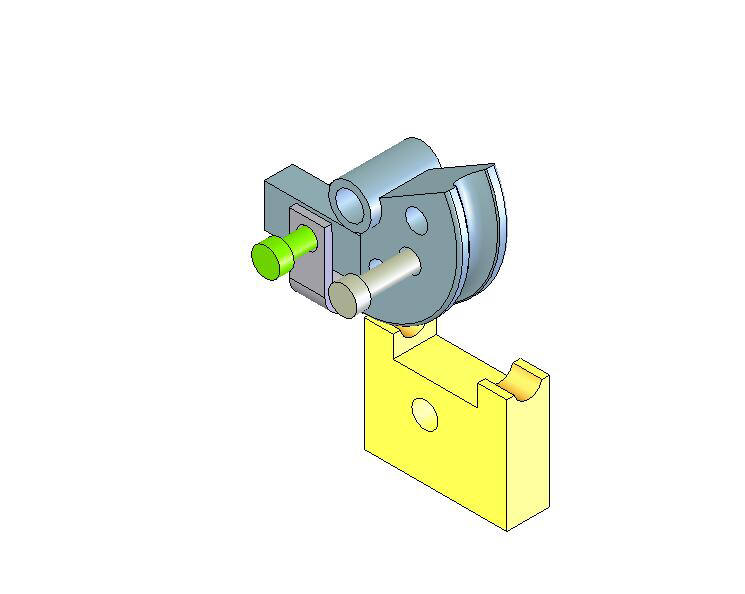

Round Tubing Dies



O.D. CLR Degree  of
Die Wrap
Around

Die Will
Bend Around

MINIMUM
WALL
DOM-4130

MAXIMUM
WALL
DOM-4130

1/2"

2"

180 DEG.

160

.058

.134

1/2"

2-1/2"

180 DEG.

160

.058

.134

1/2"

3"

180 DEG.

160

.049

.134

5/8"

2"

180 DEG.

160

.058

.134

5/8"

2-1/2"

180 DEG.

160

.058

.134

5/8"

3"

180 DEG.

160

.049

.134

5/8"

3-1/2"

120 DEG.

110

.049

.134

3/4"

2"

180 DEG.

160

.058

.134

3/4"

2-1/2"

180 DEG.

160

.058

.134

3/4"

3"

180 DEG.

160

.058

.134

3/4"

3-1/2"

120 DEG.

110

.058

.134

7/8"

3"

180 DEG.

160

.058

.134

7/8"

3-1/2"

120 DEG.

110

.058

.134

7/8"

4"

120 DEG.

110

.058

.134

7/8"

4-1/2"

120 DEG.

110

.058

.134

1"

3"

180 DEG.

160

.065

.134

1"

3-1/2"

120 DEG.

110

.058

.134

1"

4"

120 DEG.

110

.058

.134

1"

4-1/2"

120 DEG.

110

.058

.134

1-1/8"

3"

180 DEG.

160

.095

.134

1-1/8"

3-1/2"

120 DEG.

110

.083

.134

1-1/8"

4"

120 DEG.

110

.065

.134

1-1/8"

4-1/2"

120 DEG.

110

.058

.134

1-1/4"

4"

120 DEG.

110

.065

.134

1-1/4"

4-1/2"

120 DEG.

110

.058

.134

1-1/4"

5"

120 DEG.

110

.058

.134

1-1/4"

6"

120 DEG.

110

.058

.134

1-3/8"

4-1/2"

120 DEG.

110

.095

.134

1-3/8"

5"

120 DEG.

110

.083

.134

1-3/8"

6"

120 DEG.

110

.058

.134

1-1/2"

4-1/2"

120 DEG.

110

.095

.134

1-1/2"

5"

120 DEG.

110

.083

.134

1-1/2"

6"

120 DEG.

110

.058

.134

1-1/2"

7"

120 DEG.

110

.058

.134

1-5/8"

6"

120 DEG.

110

.083

.134

1-5/8"

7"

120 DEG.

110

.065

.134

1-3/4"

6"

120 DEG.

110

.083

.134

1-3/4"

7"

120 DEG.

110

.065

.134

2"

6"

120 DEG.

110

.120

.134

2"

7"

120 DEG.

110

.095

.134
