Air/Hyd Tube Bender Update and Download Page

Thanks again for your support by purchasing the Air/Hydraulic plans. I will be updating this page as new stuff comes up. So feel free to download the video, pictures or drawings.

July 2007

Click on the link to see the video clip during fabrication.

Enlarging the holes on Detail A

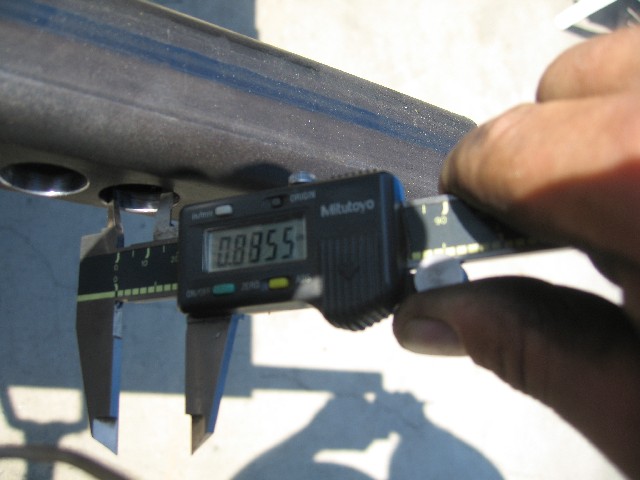

Checking hole after 0.010" clearance.

Checking hole alignment before welding detail A

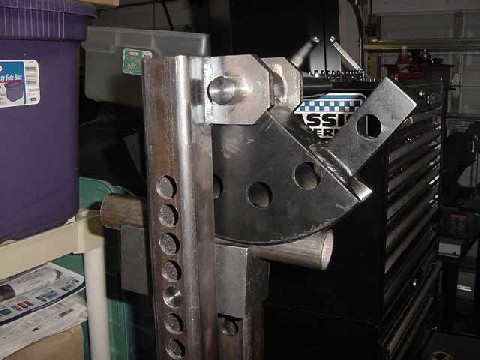

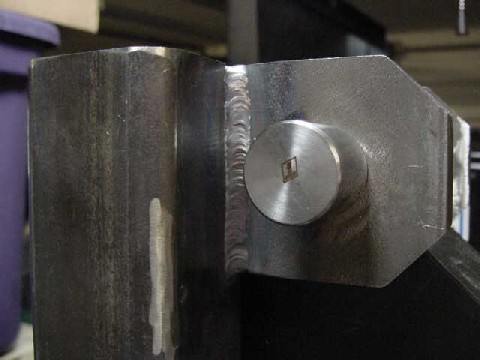

Checking hole alignment after frame is welded.

Hole diameter with .010" after enlarging with the drill

Drawings for download. Right click on the link and Save Target As on your hard drive. Use the password that came with your plans to open.

1" OD x 3.5" Radius Die set.

1" square tubing x 5" Radius Die set

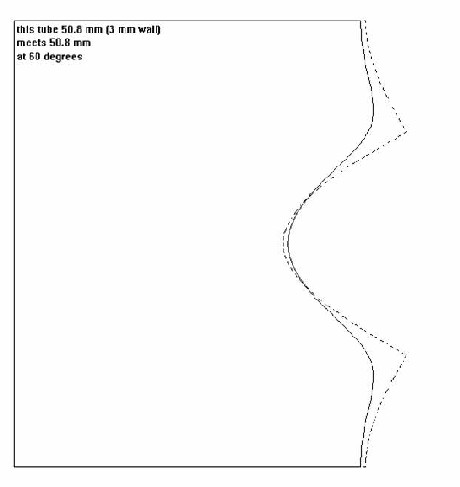

I had a customer ask me about tube miter plans. Well I do not have plans for a miter, but I found this cool program on the internet a few years ago. The program works with metric system. No big deal, just multiply the inches with 25.4 and you get your metric equivalent. The program basically prints paper templates that you wrap around the tubing and transfer it over with a marker. Use a die grinder or a rotary file and remover the unwanted metal. Check it out

For download click on the tube miter program

August 19, 2007

1 1/2" OD X 7R die set

November 14, 2007

Here is an Tube fabrication calculator for download.

12-01-07

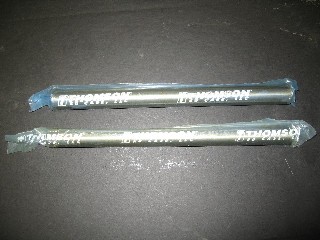

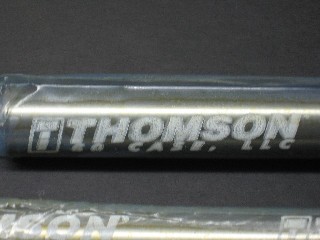

I bought some pins from McMasterCarr and when I received it, they were Thomson Shaft. Cool. I do not know if they will always ship Thomson Shaft since they do not discloses the supplier brand name.

1" OD x 12" McMaster P/N 6061K35

7/8" OD x 12" McMaster P/N 6061K333

12-13-07

I had a customer ask me for a video that shows how I use the bender. 1.5" OD tubing with 0.095" wall and the die has a CLR 7"

Video 2,2MB click here

Video 15.4MB click here

01-17-08

A customer requested a template for detail A so here is a two page file. Match up the dashed lines and glue the to pages together.

Detail A template download

03-31-08

Drawings with the Metric sheets. Right click on the link below and open it with the password that came with your purchase.

Metric sheets

5-10-08

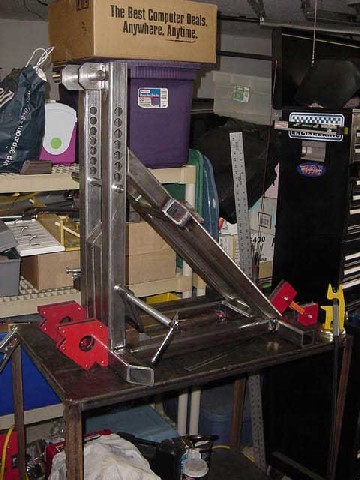

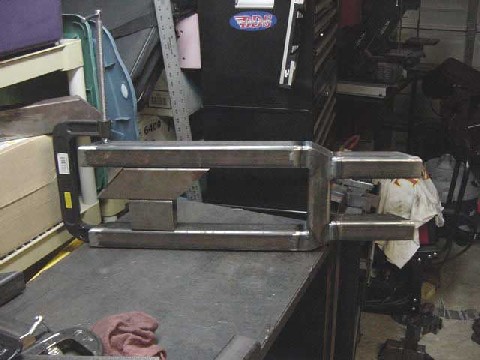

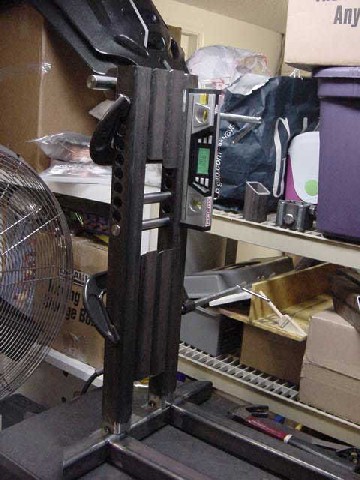

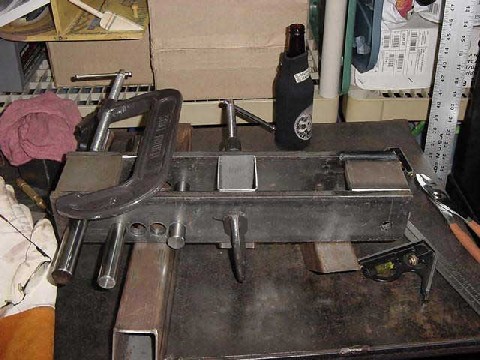

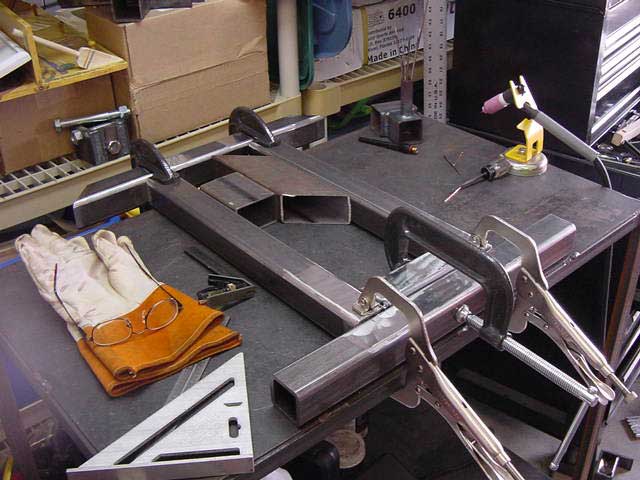

Mick for barstoolracingsuply.com sent in some pictures of his build.

For all of you that uses a milling machine use a 57/64" drill instead of the 7/8". It will give you a little more clearance.

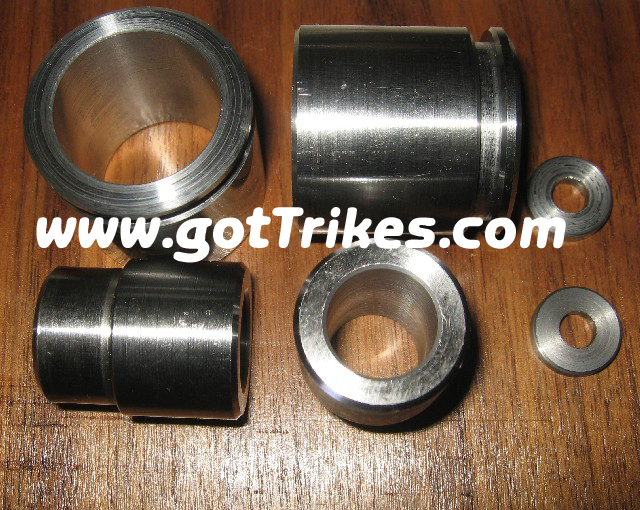

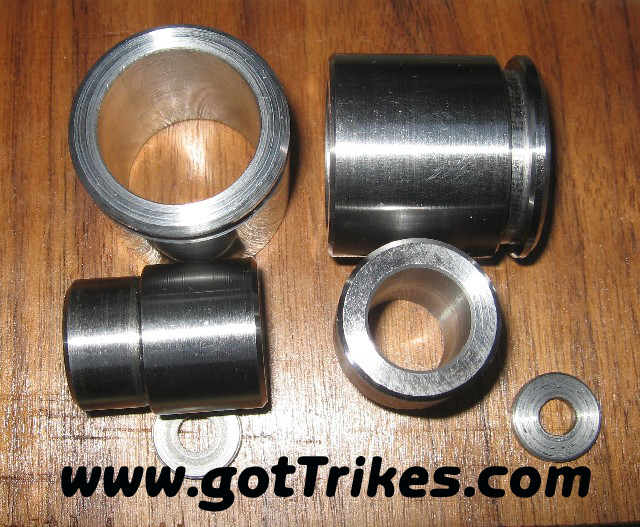

One of my customers that build style B decided to go with the alternate bushing kit. so he ordered on for his bender so here are some pictures.
