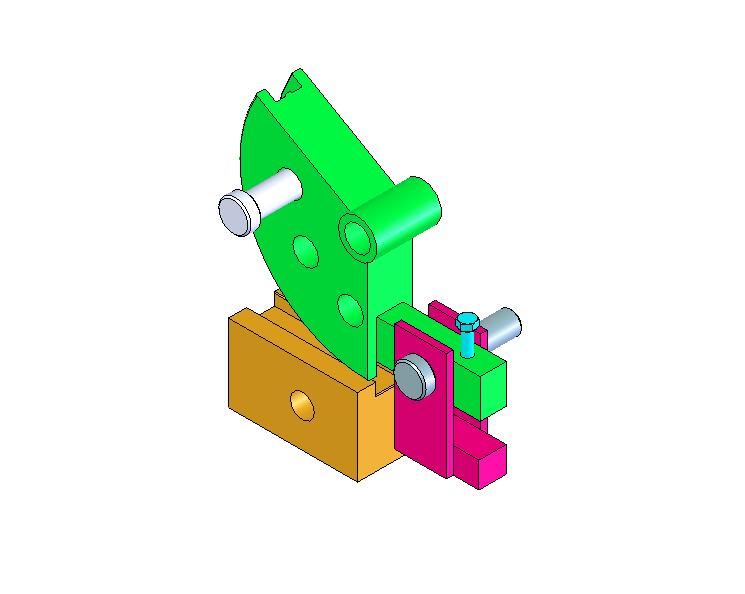

Square Tubing Die



O.D.

CLR

Degree of Die Wrap  Around

Die Will
Bend Around

MINIMUM
WALL

MAXIMUM
WALL

1/2"

3"

180 DEG.

160

.065

.083

1/2"

3-1/2"

120 DEG.

110

.065

.083

1/2"

4"

120 DEG.

110

.065

.083

1/2"

4-1/2"

120 DEG.

110

.065

.083

3/4"

3"

180 DEG.

160

.065

.083

3/4"

3-1/2"

120 DEG.

110

.065

.083

3/4"

4"

120 DEG.

110

.065

.083

3/4"

4-1/2"

120 DEG.

110

.065

.083

1"

3-1/2"

120 DEG.

110

.065

.083

1"

4"

120 DEG.

110

.065

.083

1"

4-1/2"

120 DEG.

110

.065

.083

1"

5"

120 DEG.

110

.065

.083

1"

6"

120 DEG.

110

.065

.083

1-1/4"

5"

120 DEG.

110

.065

.083

1-1/4"

6"

120 DEG.

110

.065

.083

1-1/4"

7"

120 DEG.

110

.065

.083

1-1/2"

6"

120 DEG.

110

.065

.083

1-1/2"

7"

120 DEG.

110

.065

.083
